Neodymium Disc magnet are widely used as consumer electronics magnets, speaker magnets, sensor magnets, holding magnets, and many other applications.

Neodymium Rare Earth Arc Motor Magnetsmm

Neodymium Rare Earth Arc Motor Magnets - Neodymium Disc Magnets

Neodymium Rare Earth Arc Motor Magnets


  • Min.Order Quantity: 1000 Piece/Pieces
  • Solution: Customized you required material, grade, size, coating, shape, grade, pull force and woking temperature
  • Port: FOB Ningbo
  • Payment method: T/T Paypal

Magnet Size
Maximum operating temperature

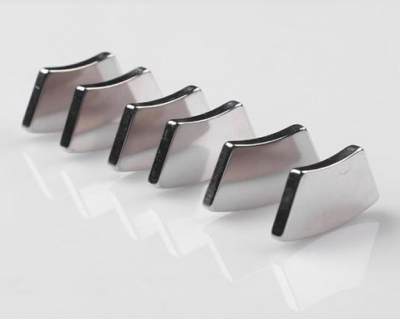

Strong Rare Earth Magnets Neodymium N52 are stronger than N50, N48 and N42. Neodymium Disc Magnets are key parts for many industries. Because of the nice magnetic performance, tiny neodymium magnet discs make many product more smaller. The Neodymium Rare Earth Arc Motor Magnets on the picture are mm, they are with plating.

BUILD YOUR CUSTOM MAGNETSSee what tcm magnetics can do for you

Request a quote today

Specifications

Product name Permanent NdFeB Arc Magnet, Nd Arc magnet, Neo Arc magnet, Rare earth Arc magnet11
Material Neodymium iron boron, Neo Magnet, Nd Magnet, Rare earth Magnet
Grade & working Temperature Grade Max Operating Temperatures
N35-N54 80°C     (176°F)
35M-52M 100°C   (212°F)
35H-50H 120°C   (248°F)
33SH-48SH 150°C   (302°F)
28UH-45UH 180°C   (356°F)
28EH-42EH 200°C   (392°F)
28AH-40AH 230°C   (446°F)
Shape
Neodymium Arc Magnets
Arc type
Neodymium Disc Magnets
Disc type
Neodymium Ring Magnets
Ring type
neodymium Cylinder & Rod Magnets
Rod type
Neodymium Block magnets
Block type
Neodymium Sphere & ball Magnets
Sphere type
Coating Ni, Ni-Cu-Ni, Electroless Nickel, Zinc, Colored Zinc, Epoxy, Passivation, Phosphated, Everlube, Au, Ag, Sn etc.
Magnetized direction

Diametrical

Diametrical

Width

Thickness

Application Servo motor,Brushless motor, Linear Motor, Automotive Motor, HEV& EV motor, Robot Driving Motor, Inverter Compressor Motor , Rail Transit Traction Motor, Consumer Electronics, Wind turbine, Energy-saving Elevator, Loudspeaker, Magnetic switch, VCM, MRI, Magnetic separator, sensor etc.
Certificate ISO/TS 16949, ISO9001, ISO14001, RoHS, REACH
In order to quote you the best price quickly . please provide the following information:
  • Product size, grade, coating ect
  • Order quantity
  • Attached the drawing if customized
