Neodymium Arc Magnet is a common type of neodymium magnet. These magnetic arc segments can be assembled together in iron housing to provide magnetic field for electromagnetic motors. Neodymium arc magnets are widely used in high performance motors and various other electronics. Please just feel free to send us an enquiry if you are looking for neodymium arc magnets, curved magnets, segment magnets, motor magnets or related magnets.

Neodymium Arc Segment Magnets

BUILD YOUR CUSTOM MAGNETSSee what tcm magnetics can do for you

Request a quote today
Neodymium Arc Magnets
Arc type
Neodymium Disc Magnets
Disc type
Neodymium Ring Magnets
Ring type
neodymium Cylinder & Rod Magnets
Rod type
Neodymium Block magnets
Block type
Neodymium Sphere & ball Magnets
Sphere type

Neodymium Arc Magnet manufacturer & supplier

Neodymium Arc Magnets

We are professional Neodymium Magnet manufacturer and supplier in China. We can produce Neodymium Magnet (NdFeB magnet) according to your requirements. More types of Neodymium Magnet (NdFeB magnet), Sintered Neodymium Magnet (NdFeB magnet), please contact us right now.

General Introduction

Arc magnets can be seen as a part of ring magnets or disc magnets. Sometimes arc magnets are called as segments magnets. Neodymium arc magnets are mostly used in electronic machines, equipments, permanent magnet motors, generators, rotors, stators, couplings, wind turbine and other applications. These products will generate a lot of heat and energy in high speed running. So the built-in arc magnets have to withstand high temperature in operating.

If you require any specific information about our magnets please contact our sales team.

arc magnets for motorsarc magnets neodymiumarc segment magnets neo arc magnets
rare earth arc magnetslarge arc magnetsarc shaped neodymium magnetsndfeb arc magnets
n52 arc magnetsarc wedge magnetscustom arc magnetsarc shaped neodymium magnets

Arc Type

Material Shape Dimension
Neodymium Magnets Arc Magnets 2'' OD x 1.75'' ID x 1'' thick
Neodymium Magnets Arc Magnets 1.5'' OD x 1.25'' ID x 0.75'' thick
Neodymium Magnets Arc Magnets 1'' OD x 0.75'' ID x 0.75'' thick
Neodymium Magnets Arc Magnets 14'' OD x 8'' ID x 1'' thick
Neodymium Magnets Arc Magnets 12'' OD x 6'' ID x 0.5'' thick
Neodymium Magnets Arc Magnets 8'' OD x 4'' ID x 1/4'' thick
Neodymium Magnets Arc Magnets 8'' OD x 4'' ID x 1/4'' thick
Neodymium Magnets Arc Magnets 2'' o.r. x 1'' i.r. x 1'' x 30
Neodymium Magnets Arc Magnets 2'' o.r. x 1'' i.r. x 1'' x 30
Neodymium Magnets Arc Magnets 2'' o.r. x 1'' i.r. x 1'' x 30
Neodymium Magnets Arc Magnets 2'' o.r. x 1'' i.r. x 1'' x 30
Neodymium Magnets Arc Magnets 1 1/8'' o.r. x 1'' i.r. x 3/4'' x 45
Neodymium Magnets Arc Magnets 1 1/8'' o.r. x 1'' i.r. x 3/4'' x 45

Magnetization Direction

Diametrical

Diametrical

Width

Thickness

Engineering drawing is important and necessary for arc shaped magnets. To avoid any misunderstanding of the dimensions and positions, please provide a clear drawing with detailed specifications, tolerance and additional requirements if any.

We list some drawings of common types of neodymium magnet segments as follows for your information.

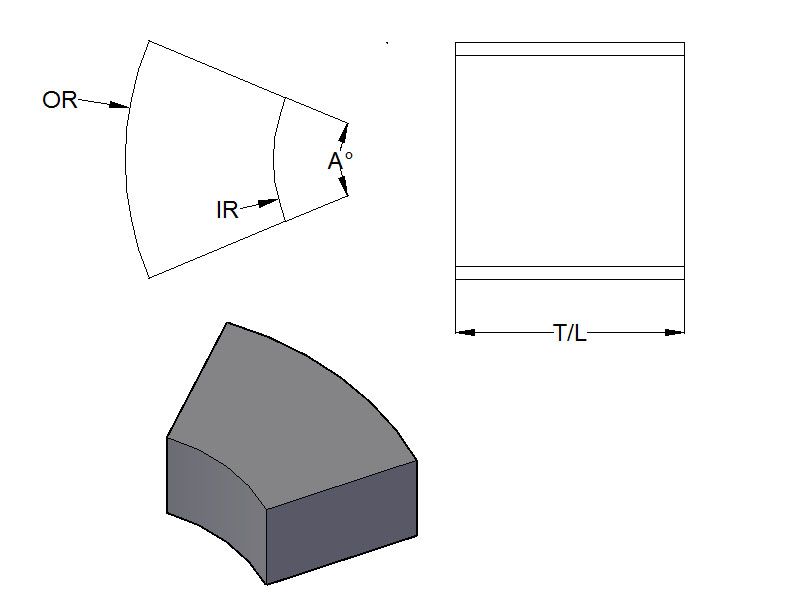

Drawing of Neodymium Arc Segment Magnets

Surface treatmen

For iron component (about 66%), it is easy disadvantages oxidizing power is strong rust there often (neodymium magnet) Nd-Fe-B sintered magnet. Surface treatment that a mandatory essential to prevent it, there is a method using various materials in it. To determine the material of plating depending on the environment used is neodymium.

PicturesArc MagnetsRod MagnetsRing MagnetsBall MagnetsBlock Magnets
CoatingZincNickelGoldSilverEpoxyParylene
Thickness7-15um15-21um16-23um16-23um20-38um10-15um
Salt spray test12 hours24 hours36 hours24 hours48 hours48 hours
