Neodymium Pot Magnets - External Threaded Stud
Our Best Selling Product!
Male threaded Rare Earth Holding Magnets are designed to be used with a washer and nut.
Rare Earth Holding Magnets are high strength rare earth magnets in a mild steel cap for extra protection against chipping or cracking. Due to the protective cover on these pot magnets, they are single sided magnets which provide an easy, non-destructive solution for attaching and suspending objects.

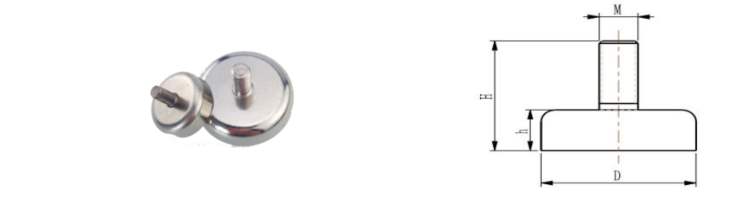

| Item No. | D | M | H | h | Weight | Strength |
|---|---|---|---|---|---|---|
| unit: mm | unit: gs | unit: kgs | ||||
| C16 | 16 | M4 | 14 | 5.2 | 9 | 8 |
| C20 | 20 | M4 | 16 | 7.2 | 16 | 12 |
| C25 | 25 | M5 | 17 | 7.7 | 26 | 22 |
| C32 | 32 | M6 | 18 | 7.8 | 43 | 34 |
| C36 | 36 | M6 | 17.6 | 7.6 | 54 | 41 |
| C40 | 40 | M6 | 17.7 | 7.9 | 75 | 51 |
| C42 | 42 | M6 | 18.7 | 8.8 | 83 | 68 |
| C48 | 48 | M8 | 24 | 10.8 | 130 | 81 |
| C60 | 60 | M8 | 31.5 | 15 | 256 | 120 |
| C75 | 75 | M10 | 35 | 17.8 | 510 | 178 |
| Item No. | D | M | H | h | Weight | Strength |
Related Products
Neodymium Pot Countersunk Magnets
Neodymium Pot Magnets are best for small sized magnetic products with maximum pull strength (ideally when in direct contact with ferromagnetic e.g. mi..
Neodymium Mounting Magnets with Straight Hole
Magnetic round base assemblies are made with neodymium magnets combined with steel cups. The magnets are magnetized together with the casings to cre..
Neodymium Pot Magnets - External Threaded Stud
Male threaded Rare Earth Holding Magnets are designed to be used with a washer and nut.Rare Earth Holding Magnets are high strength rare earth magnets..
TCM Magnetic Provide the Following Services
Pot magnets are also known as round base magnets or round magnetic Bases & even cup magnets. They are made of permanent magnets assembled inside steel cups. Most of the pot magnets use either neodymium rare earth magnets or ceramic magnets. AlNiCo pot magnets can be found but SmCo magnet is rarely used. The benefits of the cup magnets are strength and durability. The holding strength of the round base magnets is much more powerful than the magnets built in the same round base magnets since the magnetic circuit design. The steel cups protect the magnets from direct hit so to have a much longer service life.
