Strong Neodymium Ring Magnets N35, N38, N42, N45, N50 & N52. Neodymium Ring Magnets are widely used in such applications as holding, motors, consumer electronics, medical, sensors and speakers. Due to the high magnetic strength of a Rare Earth Magnet, it has replaced other magnetic materials in order to make a design smaller but achieve the same result.

Ring Magnets Neodymium N35 OD12xID6x2mm

Ring Magnets Neodymium N35 OD12xID6x2 - Neodymium Ring Magnets

Ring Magnets Neodymium N35 OD12xID6x2


  • Min.Order Quantity: 1000 Piece/Pieces
  • Solution: Customized you required material, grade, size, coating, shape, grade, pull force and woking temperature
  • Port: FOB Ningbo
  • Payment method: T/T Paypal

Magnet Size
Maximum operating temperature

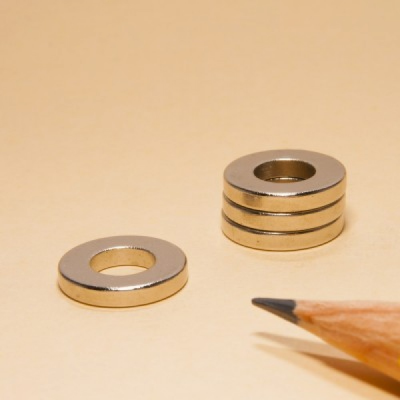

Neodymium rings are round shaped neodymium magnets with a hole in the center. Ring Magnets Neodymium N35 OD12xID6x2 is made by cutting from a neodymium tube magnets. We have different sizes for neodymium rings in stock, the size of the picture is OD12xID6x2mm which magnetized through thickness.

BUILD YOUR CUSTOM MAGNETSSee what tcm magnetics can do for you

Request a quote today

Specifications

  • Material NdFeB
  • Grade N35
  • Shape Ring
  • Coating Ni-Cu-Ni
  • Temp. massima di esercizio 80˚C (176˚F)
  • Outer diameter (OD) 12 mm
  • Inner diameter (ID) 6 mm
  • Thickness (H) 2 mm
  • Tolerance +/- 0.1mm
  • Pulling Force ~ 1.60 Kg
In order to quote you the best price quickly . please provide the following information:
  • Product size, grade, coating ect
  • Order quantity
  • Attached the drawing if customized
