Neodymium Disc magnet are widely used as consumer electronics magnets, speaker magnets, sensor magnets, holding magnets, and many other applications.
Super Strong Permanent Magnet Disc N35 D9.5x2mm
Super Strong Permanent Magnet Disc N35 D9.5x2
- Min.Order Quantity: 1000 Piece/Pieces
- Solution: Customized you required grade, size, coating, shape, pull force and woking temperature
Magnet Size
Maximum operating temperature

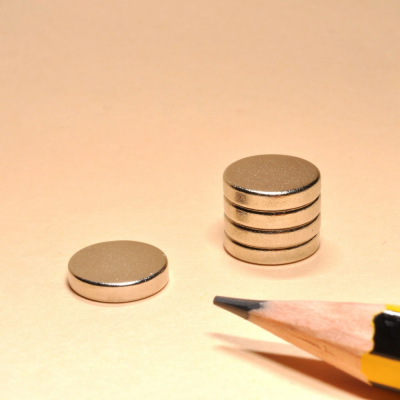

From the point of Neodymium Disc Magnets material, Neodymium Disc Magnets are have the strongest magnetic force. The Neodymium Disc Magnets on the picture measured D9.5x2mm, and made from high grade-N35 which give the Neodymium Disc Magnets super strong magnetism.
BUILD YOUR CUSTOM MAGNETSSee what tcm magnetics can do for you
Request a quote today
Specifications
- MaterialNdFeB
- GradeN35
- ShapeDisc
- CoatingNi-Cu-Ni
- Max temperature80˚C (176˚F)
- Diameter9.5 mm
- Thickness (H)2 mm
- Tolerance+/- 0.1mm
- Pulling Force~ 1.10 Kg
In order to quote you the best price quickly . please provide the following information:
- Product size, grade, coating ect
- Order quantity
- Attached the drawing if customized
