Neodymium Disc magnet are widely used as consumer electronics magnets, speaker magnets, sensor magnets, holding magnets, and many other applications.

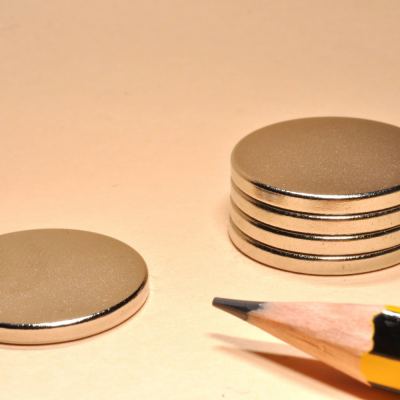

NdFeB Rare Earth Permanent Magnet Disc N35 D20x2mm

NdFeB Rare Earth Permanent Magnet Disc N35 D20x2 - Neodymium Disc Magnets

NdFeB Rare Earth Permanent Magnet Disc N35 D20x2


  • Min.Order Quantity: 1000 Piece/Pieces
  • Solution: Customized you required material, grade, size, coating, shape, grade, pull force and woking temperature
  • Port: FOB Ningbo
  • Payment method: T/T Paypal

Magnet Size
Maximum operating temperature
The Neodymium Disc Magnets that made from NdFeB material are known as powerful magnets. NdFeB magnets must be made with coating to improve the corrosion resistant ability. The NdFeB Rare Earth Permanent Magnet Disc N35 D20x2 with coating not only have very strong magnetic force, but also have strong ability of corrosion resistant.

BUILD YOUR CUSTOM MAGNETSSee what tcm magnetics can do for you

Request a quote today

Specifications

  • Material NdFeB
  • Grade N35
  • Shape Disc
  • Coating Ni-Cu-Ni
  • Max temperature 80˚C (176˚F)
  • Diameter 20 mm
  • Thickness (H) 2 mm
  • Tolerance +/- 0.1mm
  • Pulling Force ~ 1.60 Kg
In order to quote you the best price quickly . please provide the following information:
  • Product size, grade, coating ect
  • Order quantity
  • Attached the drawing if customized
