Neodymium Disc magnet are widely used as consumer electronics magnets, speaker magnets, sensor magnets, holding magnets, and many other applications.
Super Strong Neodymium Magnet Cylinder N35 D30x15mm
Super Strong Neodymium Magnet Cylinder N35 D30x15
- Min.Order Quantity: 1000 Piece/Pieces
- Solution: Customized you required grade, size, coating, shape, pull force and woking temperature
Magnet Size
Maximum operating temperature

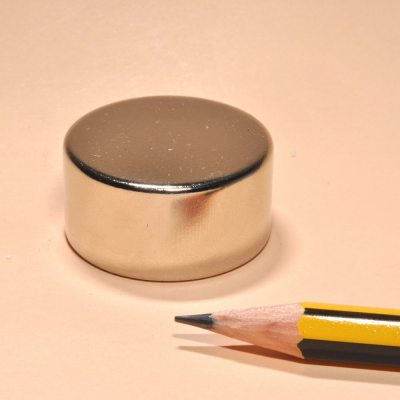

Neodymium Disc Magnets on the picture is made from rare earth NdFeb material, the size is D30x15mm, this is a common size on the neodymium magnets market. The Super Strong Neodymium Magnet Cylinder N35 D30x15 has very strong magnetic force.
BUILD YOUR CUSTOM MAGNETSSee what tcm magnetics can do for you
Request a quote today
Specifications
- Material NdFeB
- Grade N35
- Shape Disc
- Coating Ni-Cu-Ni
- Max temperature 80˚C (176˚F)
- Diameter 30 mm
- Thickness (H) 15 mm
- Tolerance +/- 0.1mm
- Marcatura SI
- Pulling Force ~ 20.50 Kg
In order to quote you the best price quickly . please provide the following information:
- Product size, grade, coating ect
- Order quantity
- Attached the drawing if customized
