Neodymium Disc magnet are widely used as consumer electronics magnets, speaker magnets, sensor magnets, holding magnets, and many other applications.
Rare Earth Circular Magnets N42 D6X2mm
Rare Earth Circular Magnets N42 D6X2
- Min.Order Quantity: 1000 Piece/Pieces
- Solution: Customized you required grade, size, coating, shape, pull force and woking temperature
Magnet Size
Maximum operating temperature

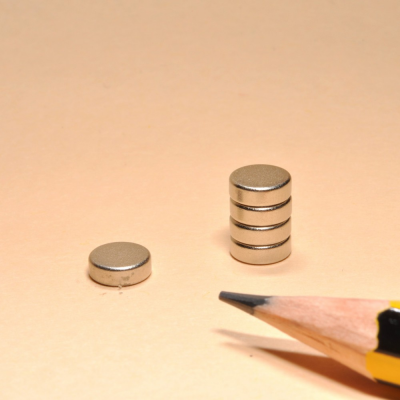

Rare Earth Circular Magnets N42 D6X2 are widely used in industry production. We have wide range of Neodymium Disc Magnets. The Neodymium Disc Magnets on the picture is D6X2mm with Ni-Cu-Ni. The Rare Earth Circular Magnets N42 D6X2 have very strong magnetic force.
BUILD YOUR CUSTOM MAGNETSSee what tcm magnetics can do for you
Request a quote today
Specifications
- MaterialNdFeB
- GradeN42
- ShapeDisc
- CoatingNi-Cu-Ni
- Max temperature80˚C (176˚F)
- Diameter6 mm
- Thickness (H)2 mm
- Tolerance+/- 0.1mm
- Pulling Force~ 0.55 Kg
In order to quote you the best price quickly . please provide the following information:
- Product size, grade, coating ect
- Order quantity
- Attached the drawing if customized
