Neodymium Disc magnet are widely used as consumer electronics magnets, speaker magnets, sensor magnets, holding magnets, and many other applications.

Permanent Magnet Disc-Shaped N50 D20x1mm

Permanent Magnet Disc-Shaped N50 D20x1 - Neodymium Disc Magnets

Permanent Magnet Disc-Shaped N50 D20x1


  • Min.Order Quantity: 1000 Piece/Pieces
  • Solution: Customized you required material, grade, size, coating, shape, grade, pull force and woking temperature
  • Port: FOB Ningbo
  • Payment method: T/T Paypal

Magnet Size
Maximum operating temperature

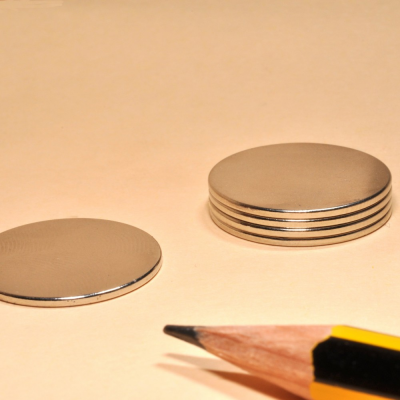

Powerful Neodymium Magnets N50 are stronger than N48, N45 and N35. Permanent Magnet Disc-Shaped N50 D20x1 on the picture is made from neodymium magnetic material, the size is D20x1mm, and the surface treatment is Ni-Cu-Ni. The Neodymium Disc Magnets are used as motor magnets.

BUILD YOUR CUSTOM MAGNETSSee what tcm magnetics can do for you

Request a quote today

Specifications

  • MaterialNdFeB
  • GradeN50
  • ShapeDisc
  • CoatingNi-Cu-Ni
  • Max temperature80˚C (176˚F)
  • Diameter20 mm
  • Thickness (H)1 mm
  • Tolerance+/- 0.1mm
  • Pulling Force~ 0.70 Kg
In order to quote you the best price quickly . please provide the following information:
  • Product size, grade, coating ect
  • Order quantity
  • Attached the drawing if customized
