Neodymium Disc magnet are widely used as consumer electronics magnets, speaker magnets, sensor magnets, holding magnets, and many other applications.
Disc Round NdFeB Neodymium Magnets N35 D8x4mm
Disc Round NdFeB Neodymium Magnets N35 D8x4
- Min.Order Quantity: 1000 Piece/Pieces
- Solution: Customized you required grade, size, coating, shape, pull force and woking temperature
Magnet Size
Maximum operating temperature

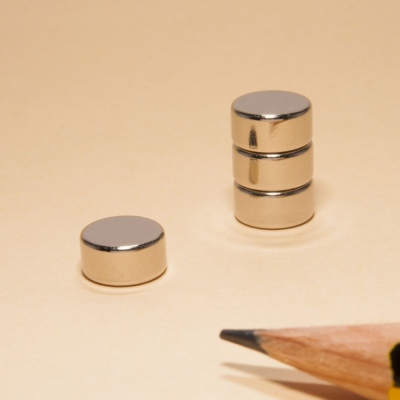

From the point of Neodymium Disc Magnets material, Neodymium Disc Magnets are have the strongest magnetic force. The Neodymium Disc Magnets on the picture measured D8x4mm, and made from high grade-N35 which give the Neodymium Disc Magnets super strong magnetism.
BUILD YOUR CUSTOM MAGNETSSee what tcm magnetics can do for you
Request a quote today
Specifications
- Material NdFeB
- Grade N35
- Shape Disc
- Coating Ni-Cu-Ni
- Max temperature 80˚C (176˚F)
- Diameter 8 mm
- Thickness (H) 4 mm
- Tolerance +/- 0.1mm
- Pulling Force ~ 1.45 Kg
In order to quote you the best price quickly . please provide the following information:
- Product size, grade, coating ect
- Order quantity
- Attached the drawing if customized
