Neodymium Disc magnet are widely used as consumer electronics magnets, speaker magnets, sensor magnets, holding magnets, and many other applications.
Disc Neodymium Powerful Magnets N35 D15x2mm
Disc Neodymium Powerful Magnets N35 D15x2
- Min.Order Quantity: 1000 Piece/Pieces
- Solution: Customized you required grade, size, coating, shape, pull force and woking temperature
Magnet Size
Maximum operating temperature

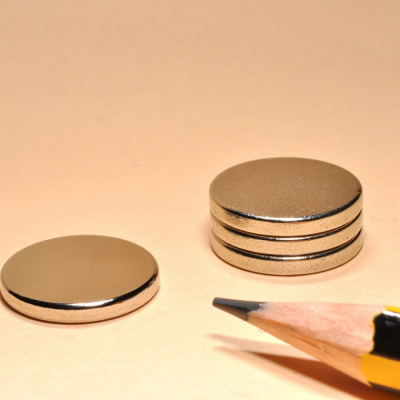

Disc Neodymium Powerful Magnets N35 D15x2 on the picture is made from neodymium magnetic material, the size is D15x2mm, and the surface treatment is Ni-Cu-Ni. The Neodymium Disc Magnets are used as motor magnets.
BUILD YOUR CUSTOM MAGNETSSee what tcm magnetics can do for you
Request a quote today
Specifications
- Material NdFeB
- Grade N35
- Shape Disc
- Coating Ni-Cu-Ni
- Max temperature 80˚C (176˚F)
- Diameter 20 mm. 15 mm
- Thickness (H) 2 mm
- Tolerance +/- 0.1mm
- Pulling Force ~ 1.60 Kg
In order to quote you the best price quickly . please provide the following information:
- Product size, grade, coating ect
- Order quantity
- Attached the drawing if customized
