Neodymium Disc magnet are widely used as consumer electronics magnets, speaker magnets, sensor magnets, holding magnets, and many other applications.
Powerful Circular Neo Magnets N35 D9x1.5mm
Powerful Circular Neo Magnets N35 D9x1.5
- Min.Order Quantity: 1000 Piece/Pieces
- Solution: Customized you required grade, size, coating, shape, pull force and woking temperature
Magnet Size
Maximum operating temperature

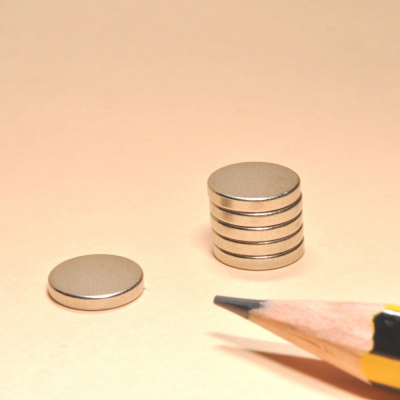

Powerful Circular Neo Magnets N35 D9x1.5 are widely used in industry production. We have wide range of Neodymium Disc Magnets. The Neodymium Disc Magnets on the picture is D9x1.5mm with Ni-Cu-Ni. The Powerful Circular Neo Magnets N35 D9x1.5 have very strong magnetic force.
BUILD YOUR CUSTOM MAGNETSSee what tcm magnetics can do for you
Request a quote today
Specifications
- MaterialNdFeB
- GradeN35
- ShapeDisc
- CoatingNi-Cu-Ni
- Max temperature80˚C (176˚F)
- Diameter9 mm
- Thickness (H)1.5 mm
- Tolerance+/- 0.1mm
- Pulling Force~ 0.55 Kg
In order to quote you the best price quickly . please provide the following information:
- Product size, grade, coating ect
- Order quantity
- Attached the drawing if customized
