Neodymium Disc magnet are widely used as consumer electronics magnets, speaker magnets, sensor magnets, holding magnets, and many other applications.
Disc Neodymium Power Magnets N35 D25X1.5mm
Disc Neodymium Power Magnets N35 D25X1.5
- Min.Order Quantity: 1000 Piece/Pieces
- Solution: Customized you required grade, size, coating, shape, pull force and woking temperature
Magnet Size
Maximum operating temperature

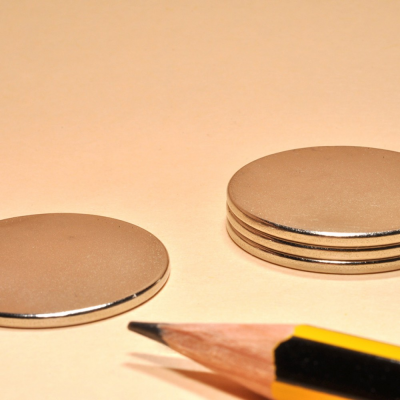

Neodymium Disc Magnets on the picture is made from rare earth NdFeb material, the size is D25X1.5mm, this is a common size on the neodymium magnets market. The Disc Neodymium Power Magnets N35 D25X1.5 has very strong magnetic force.
BUILD YOUR CUSTOM MAGNETSSee what tcm magnetics can do for you
Request a quote today
Specifications
- MaterialNdFeB
- GradeN35
- ShapeDisc
- CoatingNi-Cu-Ni
- Max temperature80˚C (176˚F)
- Diameter25 mm
- Thickness (H)1.5 mm
- Pulling Force~ 1.90 Kg
- Tolerance+/- 0.1mm
In order to quote you the best price quickly . please provide the following information:
- Product size, grade, coating ect
- Order quantity
- Attached the drawing if customized
