Neodymium Disc magnet are widely used as consumer electronics magnets, speaker magnets, sensor magnets, holding magnets, and many other applications.

Cylindrical Magnet Neodymium N35 D20x5mm

Cylindrical  Magnet Neodymium N35 D20x5 - Neodymium Disc Magnets

Cylindrical Magnet Neodymium N35 D20x5


  • Min.Order Quantity: 1000 Piece/Pieces
  • Solution: Customized you required grade, size, coating, shape, pull force and woking temperature

Magnet Size
Maximum operating temperature

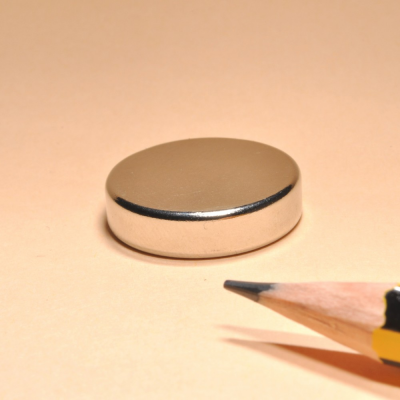

Neodymium Disc Magnets on the picture is made from rare earth NdFeb material, the size is D20x5mm, this is a common size on the neodymium magnets market. The Cylindrical Magnet Neodymium N35 D20x5 has very strong magnetic force.

BUILD YOUR CUSTOM MAGNETSSee what tcm magnetics can do for you

Request a quote today

Specifications

  • Material NdFeB
  • Grade N35
  • Shape Disc
  • Coating Ni-Cu-Ni
  • Max temperature 80˚C (176˚F)
  • Diameter 20 mm
  • Thickness (H) 5 mm
  • Tolerance +/- 0.1mm
  • Pulling Force ~ 6.50 Kg
In order to quote you the best price quickly . please provide the following information:
  • Product size, grade, coating ect
  • Order quantity
  • Attached the drawing if customized
