Neodymium countersunk magnet is special type of neodymium disc/block magnet with a hole fit for screw. We can provide neodymium countersunk magnets for various applications.

Neodymium Countersunk Discs N35SH

Neodymium Countersunk Discs N35SH - Neodymium Countersunk Magnets

Neodymium Countersunk Discs N35SH

  • Min.Order Quantity: 1000 Piece/Pieces
  • Solution: Customized you required grade, size, coating, shape, pull force and woking temperature

Magnet Size
Maximum operating temperature

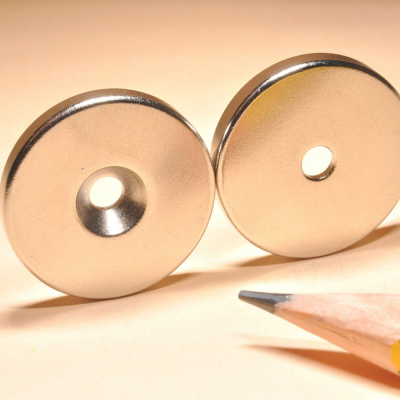

Neodymium Countersunk Discs N35SH are used with screw, they are common in neodymium magnets. We can produce neodymium countersink magnets with high size precision. The Neodymium Countersunk Magnets on the picture is OD20 x3 mm, ID3.2 mm

BUILD YOUR CUSTOM MAGNETSSee what tcm magnetics can do for you

Request a quote today


  • MaterialNdFeB
  • ShapeDisc with countersunk hole
  • GradeN35SH
  • CoatingNi-Cu-Ni
  • Max temperature150˚C (302˚F)
  • Diameter20 mm
  • Thickness (H)3 mm
  • Hole3.2 mm
  • Tolerance+/- 0.1mm
  • Pulling Force~ 4.00 Kg
In order to quote you the best price quickly . please provide the following information:
  • Product size, grade, coating ect
  • Order quantity
  • Attached the drawing if customized
