Neodymium countersunk magnet is special type of neodymium disc/block magnet with a hole fit for screw. We can provide neodymium countersunk magnets for various applications.

Powerful Disc Neo Countersunk Magnets N35

Powerful Disc Neo Countersunk Magnets N35 - Neodymium Countersunk Magnets

Powerful Disc Neo Countersunk Magnets N35


  • Min.Order Quantity: 1000 Piece/Pieces
  • Solution: Customized you required grade, size, coating, shape, pull force and woking temperature

Magnet Size
Maximum operating temperature

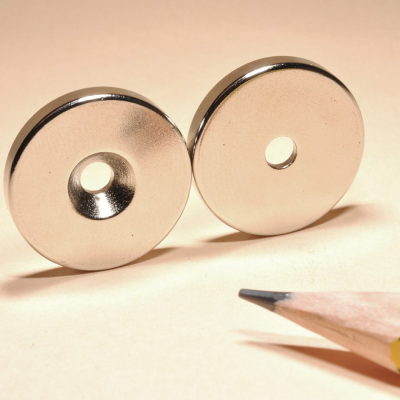

Powerful Disc Neo Countersunk Magnets N35 are used with screw, they are common in neodymium magnets. We can produce neodymium countersink magnets with high size precision. The Neodymium Countersunk Magnets on the picture is OD18 x3 mm, ID3.2 mm

BUILD YOUR CUSTOM MAGNETS

Request a quote today

Specifications

  • MaterialNdFeB
  • ShapeDisc with countersunk hole
  • GradeN35
  • CoatingNi-Cu-Ni
  • Max temperature80˚C (176˚F)
  • Diameter18 mm
  • Thickness (H)3 mm
  • Hole3.2 mm
  • Tolerance+/- 0.1mm
  • Pulling Force~ 3.50 Kg
In order to quote you the best price quickly . please provide the following information:
  • Product size, grade, coating ect
  • Order quantity
  • Attached the drawing if customized
