Neodymium countersunk magnet is special type of neodymium disc/block magnet with a hole fit for screw. We can provide neodymium countersunk magnets for various applications.

Countersunk Hole Neodymium Disc Magnets N48

Countersunk Hole Neodymium Disc Magnets N48 - Neodymium Countersunk Magnets

Countersunk Hole Neodymium Disc Magnets N48

  • Min.Order Quantity: 1000 Piece/Pieces
  • Solution: Customized you required grade, size, coating, shape, pull force and woking temperature

Magnet Size
Maximum operating temperature

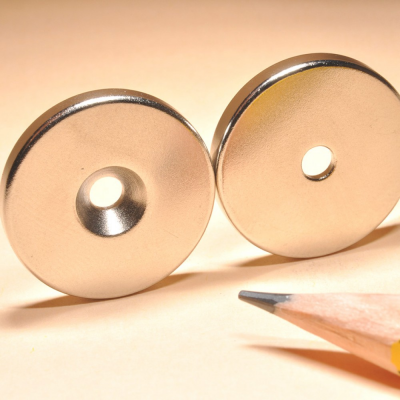

Countersunk Hole Neodymium Disc Magnets N48 and screws are generally used together. Those made from neodymium material are known as powerful countersunk magnets. They are used when strong holding force need. The powerful countersunk magnets from the picture are measured OD20 x3 mm, ID3.2 mm.

BUILD YOUR CUSTOM MAGNETSSee what tcm magnetics can do for you

Request a quote today


  • MaterialNdFeB
  • ShapeDisc with countersunk hole
  • GradeN48
  • CoatingZn
  • Max temperature80˚C (176˚F)
  • Diameter20 mm
  • Thickness (H)3 mm
  • Hole3.2 mm
  • Tolerance+/- 0.1mm
  • Pulling Force~ 4.00 Kg
In order to quote you the best price quickly . please provide the following information:
  • Product size, grade, coating ect
  • Order quantity
  • Attached the drawing if customized
