Strong Neodymium Ring Magnets N35, N38, N42, N45, N50 & N52. Neodymium Ring Magnets are widely used in such applications as holding, motors, consumer electronics, medical, sensors and speakers. Due to the high magnetic strength of a Rare Earth Magnet, it has replaced other magnetic materials in order to make a design smaller but achieve the same result.
strong neo ring magnet N35 OD16xID6x2mm
strong neo ring magnet N35 OD16xID6x2
- Min.Order Quantity: 1000 Piece/Pieces
- Solution: Customized you required grade, size, coating, shape, pull force and woking temperature
Magnet Size
Maximum operating temperature

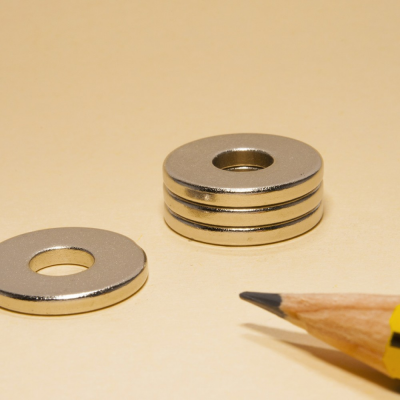

Neodymium rings are round shaped neodymium magnets with a hole in the center. strong neo ring magnet N35 OD16xID6x2 is made by cutting from a neodymium tube magnets. We have different sizes for neodymium rings in stock, the size of the picture is OD16xID6x2mm which magnetized through thickness.
BUILD YOUR CUSTOM MAGNETSSee what tcm magnetics can do for you2>
Request a quote today
Specifications
- Material NdFeB
- Grade N35
- Shape Ring
- Coating Ni-Cu-Ni
- Max temperature 80˚C (176˚F)
- Outer diameter (OD) 16 mm
- Inner diameter (ID) 6 mm
- Thickness (H) 2 mm
- Tolerance +/- 0.1mm
- Pulling Force ~ 1.80 Kg
In order to quote you the best price quickly . please provide the following information:
- Product size, grade, coating ect
- Order quantity
- Attached the drawing if customized
