Neodymium Disc magnet are widely used as consumer electronics magnets, speaker magnets, sensor magnets, holding magnets, and many other applications.

N35 Powerful Magnet NdFeB Disc D10x10mm

N35 Powerful Magnet NdFeB Disc D10x10 - Neodymium Disc Magnets

N35 Powerful Magnet NdFeB Disc D10x10


  • Min.Order Quantity: 1000 Piece/Pieces
  • Solution: Customized you required grade, size, coating, shape, pull force and woking temperature

Magnet Size
Maximum operating temperature

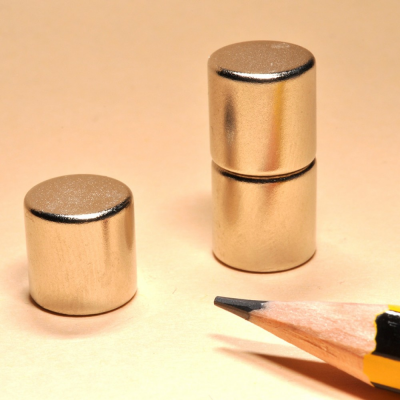

Neodymium Disc Magnets are key parts for many industries. Because of the nice magnetic performance, tiny neodymium magnet discs make many product more smaller. The N35 Powerful Magnet NdFeB Disc D10x10 on the picture are D10x10mm, they are with Ni-Cu-Ni plating.

BUILD YOUR CUSTOM MAGNETSSee what tcm magnetics can do for you

Request a quote today

Specifications

  • Material NdFeB
  • Grade N35
  • Shape Disc
  • Coating Ni-Cu-Ni
  • Max temperature 80˚C (176˚F)
  • Diameter 10 mm
  • Thickness (H) 10 mm
  • Tolerance +/- 0.1mm
  • Pulling Force ~ 3.60 Kg
In order to quote you the best price quickly . please provide the following information:
  • Product size, grade, coating ect
  • Order quantity
  • Attached the drawing if customized
