Neodymium Disc magnet are widely used as consumer electronics magnets, speaker magnets, sensor magnets, holding magnets, and many other applications.

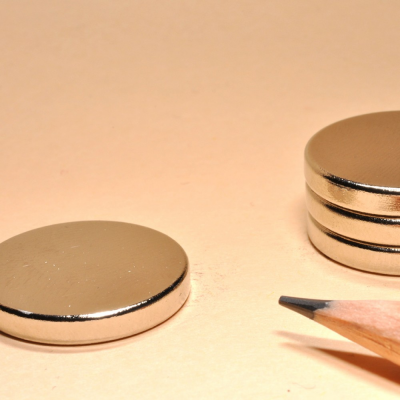

Cylindrical Magnet Neodymium N35 D20x3mm
Cylindrical Magnet Neodymium N35 D20x3
- Min.Order Quantity: 1000 Piece/Pieces
- Solution: Customized you required grade, size, coating, shape, pull force and woking temperature
Magnet Size
Maximum operating temperature
The Neodymium Disc Magnets that made from NdFeB material are known as powerful magnets. NdFeB magnets must be made with coating to improve the corrosion resistant ability. The Cylindrical Magnet Neodymium N35 D20x3 with coating not only have very strong magnetic force, but also have strong ability of corrosion resistant.
BUILD YOUR CUSTOM MAGNETSSee what tcm magnetics can do for you
Request a quote today
Specifications
- Material NdFeB
- Grade N35
- Shape Disc
- Coating NiCuNi
- Max temperature 80˚C (176˚F)
- Diameter 20 mm
- Thickness (H) 3 mm
- Tolerance +/- 0.1mm
- Pulling Force ~ 3.20 Kg
In order to quote you the best price quickly . please provide the following information:
- Product size, grade, coating ect
- Order quantity
- Attached the drawing if customized
