Neodymium Block Magnets N35, N42, N45, N50 & N52 No matter how you call this category, strong bar magnets, bar magnets, magnetic blocks, magnet blocks or bar magnets, their basic geometric shape is a rectangle.

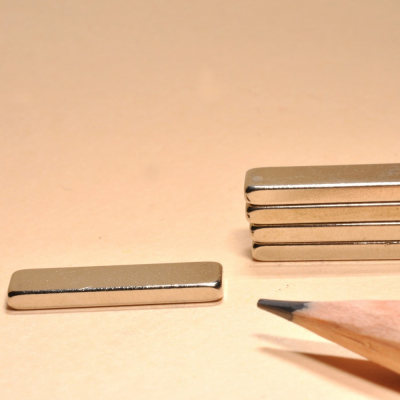

Rectangular Block Magnet Neodymium N52 20X4X2mm

Rectangular Block Magnet Neodymium N52 20X4X2 - Neodymium Block Magnets

Rectangular Block Magnet Neodymium N52 20X4X2


  • Min.Order Quantity: 1000 Piece/Pieces
  • Solution: Customized you required material, grade, size, coating, shape, grade, pull force and woking temperature
  • Port: FOB Ningbo
  • Payment method: T/T Paypal

Magnet Size
Maximum operating temperature
Strong Rare Earth Magnets Neodymium N52 are stronger than N50, N48 and N42.

BUILD YOUR CUSTOM MAGNETSSee what tcm magnetics can do for you

Request a quote today

Specifications

  • MaterialNdFeB
  • GradeN52
  • ShapeBlock
  • CoatingNi-Cu-Ni
  • Max temperature80˚C (176˚F)
  • Length (A)20 mm
  • Width (B)4 mm
  • Thickness (H)2 mm
  • Tolerance+/- 0.1mm
  • Pulling Force~ 1.20 Kg
In order to quote you the best price quickly . please provide the following information:
  • Product size, grade, coating ect
  • Order quantity
  • Attached the drawing if customized
