Neodymium Block Magnets N35, N42, N45, N50 & N52 No matter how you call this category, strong bar magnets, bar magnets, magnetic blocks, magnet blocks or bar magnets, their basic geometric shape is a rectangle.

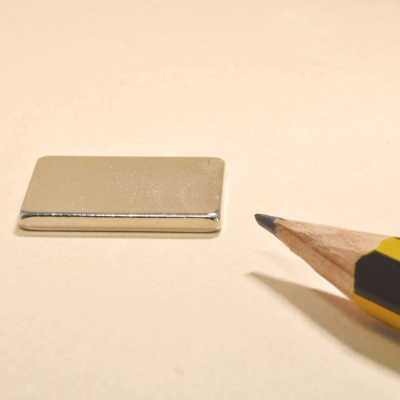

Rare Earth Block Magnets N52 20X15X2mm

Rare Earth Block Magnets N52 20X15X2 - Neodymium Block Magnets

Rare Earth Block Magnets N52 20X15X2


  • Min.Order Quantity: 1000 Piece/Pieces
  • Solution: Customized you required grade, size, coating, shape, pull force and woking temperature

Magnet Size
Maximum operating temperature
Strong Rare Earth Magnets Neodymium N52 are stronger than N50, N48 and N42. Neodymium Block Magnets (Nd-Fe-B) are made from the most powerful magnetic material in the world. They boast extreme strength in a small size. We offer many sizes and grades suitable to a variety of manufacturing, hobby and craft applications.

8111

BUILD YOUR CUSTOM MAGNETSSee what tcm magnetics can do for you

Request a quote today

Specifications

  • MaterialNdFeB
  • GradeN52
  • ShapeBlock
  • CoatingNi-Cu-Ni
  • Max temperature80˚C (176˚F)
  • Length (A)20 mm
  • Width (B)15 mm
  • Thickness (H)2 mm
  • Tolerance+/- 0.1mm
  • Pulling Force2.60 Kg
In order to quote you the best price quickly . please provide the following information:
  • Product size, grade, coating ect
  • Order quantity
  • Attached the drawing if customized
