Neodymium Block Magnets N35, N42, N45, N50 & N52 No matter how you call this category, strong bar magnets, bar magnets, magnetic blocks, magnet blocks or bar magnets, their basic geometric shape is a rectangle.

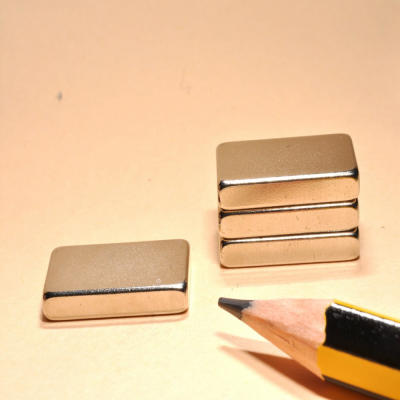

Neodymium Super Bar Magnets N35 20X10X3mm

Neodymium Super Bar Magnets N35 20X10X3 - Neodymium Block Magnets

Neodymium Super Bar Magnets N35 20X10X3


  • Min.Order Quantity: 1000 Piece/Pieces
  • Solution: Customized you required grade, size, coating, shape, pull force and woking temperature

Magnet Size
Maximum operating temperature
we have wide size range of Neodymium Block Magnets. This Neodymium Super Bar Magnets N35 20X10X3 measured as 20X10X3, and magnetized through thickness. The grades of the Neodymium Block Magnets are made from N35-N52. The magnetic force of the Neodymium Block Magnets are super strong. It is almost standard sizes for magnets distributors. Welcome your inquiry of Neodymium Block Magnets.

BUILD YOUR CUSTOM MAGNETSSee what tcm magnetics can do for you

Request a quote today

Specifications

  • Material NdFeB
  • Grade N35
  • Shape Block
  • Coating Ni-Cu-Ni
  • Max temperature 80˚C (176˚F)
  • Length (A) 20 mm
  • Width (B) 10 mm
  • Thickness (H) 3 mm
  • Tolerance +/- 0.1mm
  • Pulling Force ~ 3.30 Kg
In order to quote you the best price quickly . please provide the following information:
  • Product size, grade, coating ect
  • Order quantity
  • Attached the drawing if customized
