Magnetic Filter Bars
Our Best Selling Product!

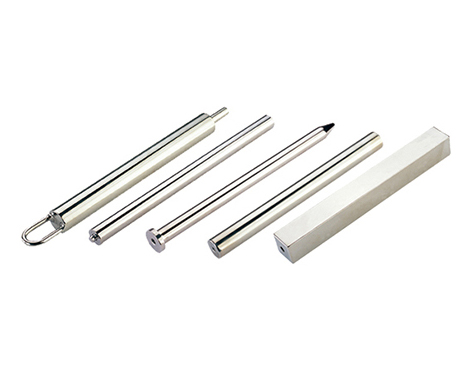

Our Magnetic filter bars were originally designed for the food industry to capture and hold micron size ferrous metal contamination from dry free flowing powder, granules, liquids and emulsions. Over the many years we have been selling these we have had clients also use them for a wide range of other projects like in the Gas, Mining, Pharmaceutical and Coffee industries. They are tapped at each end and can be bolted to a frame or bracket forming a magnetic grid.
Features：
- Standard round bar has a length of 25 mm(1 inch) diameter. As required, it can reach the maximum length of 2500mm. Magnetic tube or other different shape and dimension are also available.
- 304 or 316L stainless steel are available for pipeline material which can be fine polished and meet the standard of food or pharmacy industry.
- Standard working temperature≤80℃, and maximum working temperature can reach 350℃ as required.
- Various kinds of ends like nail head, thread hole, double screw bolt are also available.
- Different kinds of magnet like ferrum magnet or other rare earth magnets are available to meet every customer's requirement. The maximum magnetic strength of 25mm (1 inch) diameter can reach 13,000GS (1.3T).
Specifications
| Part No | 0.25T | 0.5T | 0.7T | 0.9T | 1T | 1.1T | 1.3T |
|---|---|---|---|---|---|---|---|
| Ø10 | √EH | √H | - | - | - | - | - |
| Ø16 | √EH | √EH | √EH | √H | √H | - | - |
| Ø19 | √EH | √EH | √EH | √H | √H | - | - |
| Ø20 | √EH | √EH | √EH | √SH | √H | √H | - |
| Ø22 | √EH | √EH | √EH | √EH | √EH | √H | - |
| Ø23 | √EH | √EH | √EH | √EH | √EH | √H | - |
| Ø25 | √EH | √EH | √EH | √EH | √EH | √EH | √H |
| Ø28 | √EH | √EH | √EH | √EH | √EH | √EH | √H |
| Ø32 | √EH | √EH | √EH | √EH | √EH | √EH | √H |
| Ø38 | √EH | √EH | √EH | √EH | √UH | √H | √H |
| Ø50 | √EH | √EH | √EH | √UH | √H | √H | √H |
| Ø76 | √EH | √EH | √EH | √H | √H | √H | √H |
| Ø100 | √EH | √EH | √H | √H | - | - | √H |
