Flat mount with a tapered center hole for recessing the head of a srew.

Strong Round Base Pot Magnet Ø75 x 17.8mm, 162kg Pull

Item Code: A75

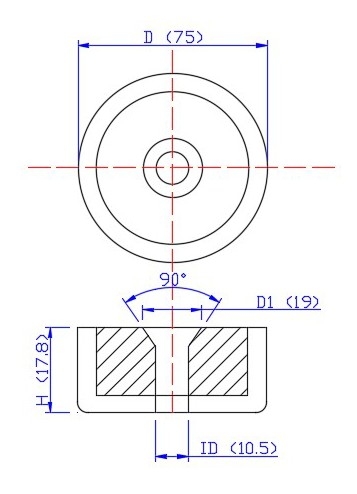

Product Dimensions

Voice Name Symbol SI IN
Shape Diameter D 75 mm 2.95 "
Internal diameter ID 10.5 mm 0.41 "
Countersinking D1 19 mm 0.75 "
Height H 17.8 mm 0.70 "
Screw M M10
Direction of magnetization M Axially
Weight Net 480 g
Pull Force Attraction 162 kg 357 Lbs
Surface treatment Ni 12 μm
Material properties Material symbols Pot Neodymium N35
remanence Br 1170-1220 mT 11.7-12.2 kG
Coercivity Hcb ≧868 kA/m  kOe
Intrinsic coercive force Hcj ≧955 kA/m  kOe
Maximum energy product BH 263-287 kj/m3  MGOe
Temperature coefficient Br -0.12 %/℃
Hcj -0.55 %/℃
Heat resistant temperature Tw ≦80 ℃
Curie temperature Tc 310 ℃
Density ρ 7.5 kg/m3
Remarks Attraction/heat force depends on the measurement equipment and the environment. These are only references values, these are not the guaranteed value.
