Flat mount with a straight center hole to recess a bolt or a pan head screw.
Pot Magnet Ø42 x 8.8mm Flat with Cylinder Bore, M6 Screw hole
Item Code: B42

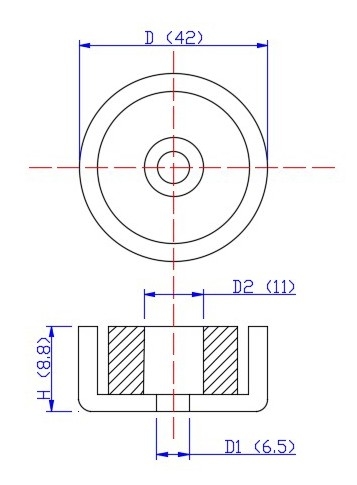

Product Dimensions
| Voice | Name | Symbol | SI | IN |
|---|---|---|---|---|
| Shape | Diameter | D | 42 mm | 1.65 " |
| Borehole | D1 | 6.5 mm | 0.26 " | |
| Borehole | D2 | 11 mm | 0.43 " | |
| Height | H | 8.8 mm | 0.35 " | |
| Screw | M | M6 | ||
| Direction of magnetization | M | Axially | ||
| Weight | Net | 75 g | ||
| Pull Force | Attraction | 32 kg | 71 Lbs | |
| Surface treatment | Ni | 12 μm | ||
| Material properties | Material symbols | Pot Neodymium | N35 | |
| remanence | Br | 1170-1220 mT | 11.7-12.2 kG | |
| Coercivity | Hcb | ≧868 kA/m | kOe | |
| Intrinsic coercive force | Hcj | ≧955 kA/m | kOe | |
| Maximum energy product | BH | 263-287 kj/m3 | MGOe | |
| Temperature coefficient | Br | -0.12 %/℃ | ||
| Hcj | -0.55 %/℃ | |||
| Heat resistant temperature | Tw | ≦80 ℃ | ||
| Curie temperature | Tc | 310 ℃ | ||
| Density | ρ | 7.5 kg/m3 | ||
| Remarks | Attraction/heat force depends on the measurement equipment and the environment. These are only references values, these are not the guaranteed value. | |||
