Pot magnets, Cup magnets, Mounting magnets, Magnetic holder, Magnetic hook, Round base magnet

We offer Magnetic Pot Magnet:Pot Magnet with External Threaded Stud / Boss Mounting, Pot Magnet with Internal Threaded Mounting (Deep Pot), Pot Magnet with Countersunk Mounting (Shallow Pot), Pot Magnet with Through Hole Mounting, Pot Magnet with Internal Threaded Stud / Boss Mounting, Pot Magnet with Threaded Through Hole Mounting.

Holding Power Neodymium Pot Magnets

Holding Power Neodymium Pot Magnet with Internal thread

Holding Power Neodymium Pot Magnets

Our Best Selling Product!

Rare Earth Holding Magnets (Internal Thread) are perfect for screwing brackets into.

Rare Earth Holding Magnets are high strength rare earth magnets in a mild steel cap for extra protection against chipping or cracking. Due to the protective cover on these pot magnets, they are single sided magnets which provide an easy, non-destructive solution for attaching and suspending objects.

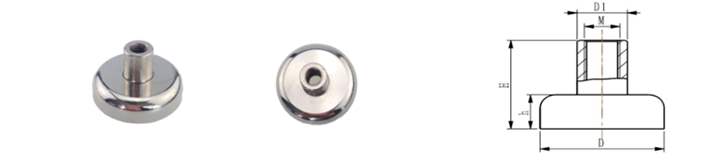

Neodymium pot magnet (NdFeB), with Internal thread, NiCuNi coating

Manufacturer Part Number Description D D1 M H h Weight (G) Strength (KG)
mm (1"=25.4mm) 1lbs=0.453kg
Neo-D16 MAGNET ROUND NDFEB AXIAL 16 6.5 4 13.5 5.2 9 8
Neo-D20 MAGNET ROUND NDFEB AXIAL 20 6.5 4 15 7.2 19 9
Neo-D25 MAGNET ROUND NDFEB AXIAL 25 7.5 5 17 7.7 28 22
Neo-D32 MAGNET ROUND NDFEB AXIAL 32 10 6 18 7.8 45 34
Neo-D36 MAGNET ROUND NDFEB AXIAL 36 10 6 18.5 7.6 55 41
Neo-D40 MAGNET ROUND NDFEB AXIAL 40 10 6 18.8 7.9 78 51
Neo-D42 MAGNET ROUND NDFEB AXIAL 42 10 6 18.8 8.8 84 68
Neo-D48 MAGNET ROUND NDFEB AXIAL 48 12 8 24 10.8 130 81
Neo-D60 MAGNET ROUND NDFEB AXIAL 60 12 8 28 15 263 120
Neo-D75 MAGNET ROUND NDFEB AXIAL 75 17 10 35 17.8 515 178
Neo-D16-2 MAGNET ROUND NDFEB AXIAL 16 6.5 4 13.5 5.2 10 8
Neo-D20-2 MAGNET ROUND NDFEB AXIAL 20 6.5 4 13.8 6 15 12
Neo-D25-2 MAGNET ROUND NDFEB AXIAL 25 7.5 5 16.2 6.9 27 22
Neo-D32 MAGNET ROUND NDFEB AXIAL 32 10 6 17 6.8 45 34
Neo-D36-2 MAGNET ROUND NDFEB AXIAL 36 10 6 17.8 6.9 58 41
Neo-D42-2 MAGNET ROUND NDFEB AXIAL 42 10 6 18.8 7.9 86 68
Neo-D48-2 MAGNET ROUND NDFEB AXIAL 48 12 8 22.8 9.6 128 81
Neo-D60-2 MAGNET ROUND NDFEB AXIAL 60 12 8 32.2 13.9 285 120
Neo-D75-2 MAGNET ROUND NDFEB AXIAL 75 17 10 35 17.9 577 178

Related Products

Neodymium Pot Magnets - External Threaded Stud

Neodymium Pot Magnets - External Threaded Stud

Male threaded Rare Earth Holding Magnets are designed to be used with a washer and nut.Rare Earth Holding Magnets are high strength rare earth magnets..

Neodymium Rectangular Pot Magnets with Countersunk

Neodymium Rectangular Pot Magnets with Countersunk

Rectangular Neodymium Magnets with countersunk hole. This Rectangular countersunk hole provides a great way to screw the strong neodymium magnets to a..

Magnetic Clip Carabiner Hooks

Magnetic Clip Carabiner Hooks

Magnetic Carabiner Hooks may be used indoors or outdoors to permanently or temporarily attach to various ferrous metal surfaces such as I-beams, door ..

We have been working on the layout and implementation of automatic production, and fully automated production allows us to improve production efficiency and ensure quality consistency!!

TCM Magnetic Provide the Following Services

Magnetic Assemblies
Magnetic component is a product which assemble a magnet and other parts together.Through the optimization of internal magnetic circuit, the magnetic component has small size and strong magnetic force.
Custom products and solutions
Customize and process all kinds of magnetic products for customers.
Magnetic Materials
Ferromagnetic materials are generally contain Fe, Co, Ni elements and their alloys, rare earth elements and alloys, and some Mn compounds.

Pot magnets are also known as round base magnets or round magnetic Bases & even cup magnets. They are made of permanent magnets assembled inside steel cups. Most of the pot magnets use either neodymium rare earth magnets or ceramic magnets. AlNiCo pot magnets can be found but SmCo magnet is rarely used. The benefits of the cup magnets are strength and durability. The holding strength of the round base magnets is much more powerful than the magnets built in the same round base magnets since the magnetic circuit design. The steel cups protect the magnets from direct hit so to have a much longer service life.
