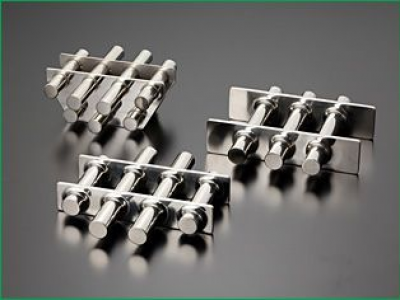

Magnetic filter is designed to get rid off iron/steel substances in liquor then be used in various fields such as chemical industry, foodstuff industry, medicament, feedstuff industry and so on. It is constructed from magnetic filter bar, stainless steel and have a satin finish, then fixed onto a framework. The magnetic filter bar is made of permanent magnets and stainless tubes with special magnetic circuit. When liquor containing iron/steel substances passes through the framework, the iron/steel substances will attach themselves onto the wall of the filter bars / Magnetic cartridges. As a result, your equipment and facilities will be safe and sound, and your productions will be safe for consumption.

Magnetic Filter Magnetic Filter

Characteristic of magnetic filter

  • The magnetic filters can be installed easily in fluid flow line
  • They give complete magnetic protection by attracting iron particles as fine as 10 microns into the magnetic trap
  • The magnets are installed in polished condition for higher life of the rods and ease of cleaning
  • For different flow rates, different sizes of magnetic filters are available
  • High Intensity Rear Earth Magnets or Low Intensity St. Ferrite Magnets are used depending upon the users requirement
  • Normally these filters are designed to take up pressures 5kg/sq cm. They can be designed to withstand higher pressure
  • Maximum operating temperature 80℃. They can be designed to work at temperatures as high as 200℃

Magnetic filter working principle diagram

Magnetic filter working principle diagram

Magnetic Filter External Dimensions

Magnetic Filter Magnetic Filter Magnetic FilterMagnetic Filter

If you have your own design, we can customize it, welcome to sending us the drawings!
